NSK UKFL308D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKFL308D1
Included products
Bearing
Housing
FL308D1
Housing
Associated products
Adapter sleeve

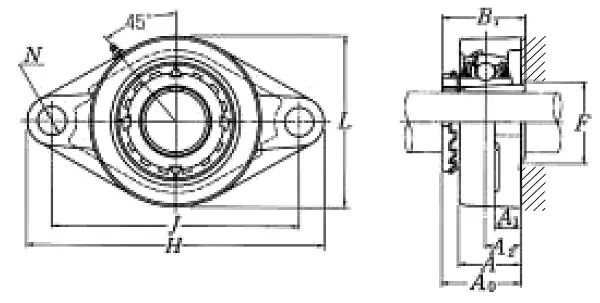

Nominal Dimensions
d
35
mm
Bore diameter
L,L1
112
mm
Overall height
J
158
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A2
23
mm
Flange width
A1
17
mm
Flange width
A
40
mm
Base width
A0
50
mm
Overall width
B,B1,B2
46
mm
Width of inner ring
H
200
mm
Overall length
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
40.5
kN
Basic dynamic load rating
C0r
24
kN
Basic static load rating
