NSK UKFL309D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKFL309D1
Included products
Bearing
Housing
FL309D1
Housing
Associated products
Adapter sleeve

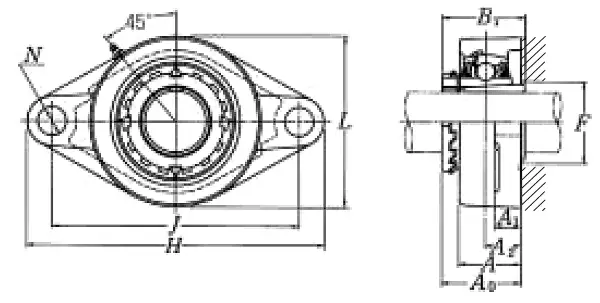

Nominal Dimensions
d
40
mm
Bore diameter
L,L1
125
mm
Overall height
J
177
mm
Distance between attachment bolts
N
25
mm
Diameter of attachment bolt hole
A2
25
mm
Flange width
A1
18
mm
Flange width
A
44
mm
Base width
A0
54.5
mm
Overall width
B,B1,B2
50
mm
Width of inner ring
H
230
mm
Overall length
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
53
kN
Basic dynamic load rating
C0r
32
kN
Basic static load rating
