NSK UKFL315D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKFL315D1
Included products
Bearing
Housing
FL315D1
Housing
Associated products
Adapter sleeve

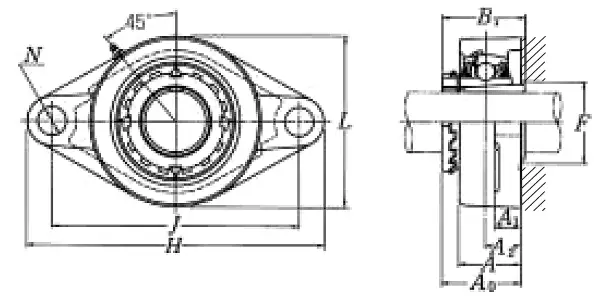

Nominal Dimensions
d
65
mm
Bore diameter
L,L1
195
mm
Overall height
J
260
mm
Distance between attachment bolts
N
39
mm
Diameter of attachment bolt hole
A2
39
mm
Flange width
A1
30
mm
Flange width
A
66
mm
Base width
A0
81.5
mm
Overall width
B,B1,B2
73
mm
Width of inner ring
H
320
mm
Overall length
Mounting information
G
M30
Bolt size
Basic Load Ratings
Cr
113
kN
Basic dynamic load rating
C0r
77
kN
Basic static load rating
