NSK UKFL316D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKFL316D1
Included products
Bearing
Housing
FL316D1
Housing
Associated products
Adapter sleeve

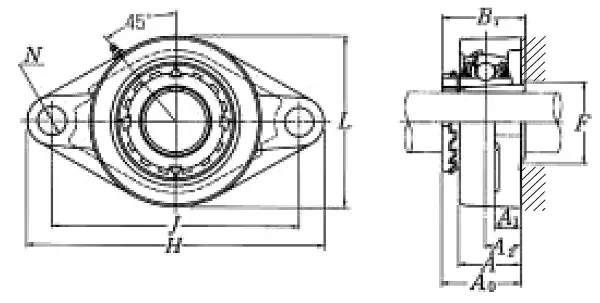

Nominal Dimensions
d
70
mm
Bore diameter
L,L1
210
mm
Overall height
J
285
mm
Distance between attachment bolts
N
38
mm
Diameter of attachment bolt hole
A2
38
mm
Flange width
A1
32
mm
Flange width
A
68
mm
Base width
A0
84
mm
Overall width
B,B1,B2
78
mm
Width of inner ring
H
355
mm
Overall length
Mounting information
G
M33
Bolt size
Basic Load Ratings
Cr
123
kN
Basic dynamic load rating
C0r
86.5
kN
Basic static load rating
