NSK UKFL322D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKFL322D1
Included products
Bearing
Housing
FL322D1
Housing
Associated products
Adapter sleeve

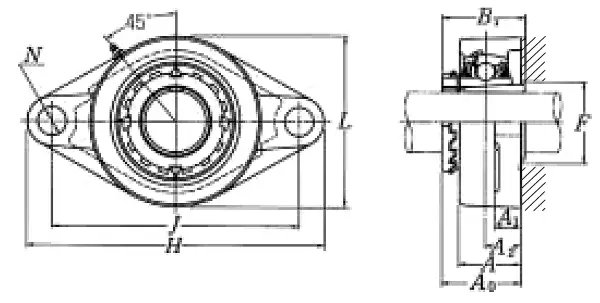

Nominal Dimensions
d
100
mm
Bore diameter
L,L1
300
mm
Overall height
J
390
mm
Distance between attachment bolts
N
44
mm
Diameter of attachment bolt hole
A2
60
mm
Flange width
A1
42
mm
Flange width
A
96
mm
Base width
B,B1,B2
105
mm
Width of inner ring
H
470
mm
Overall length
Mounting information
G
M39
Bolt size
Basic Load Ratings
Cr
205
kN
Basic dynamic load rating
C0r
179
kN
Basic static load rating
