NSK UKFLX07D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKFLX07D1
Included products
Bearing
Housing
FLX07D1
Housing
Associated products
Adapter sleeve

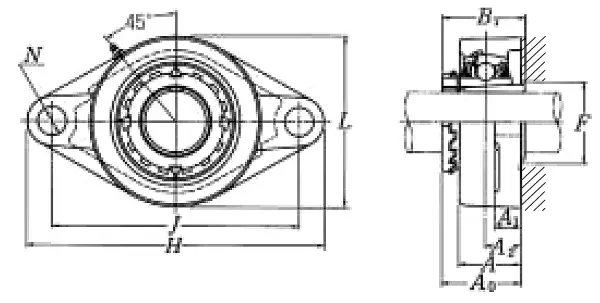

Nominal Dimensions
d
30
mm
Bore diameter
L,L1
105
mm
Overall height
J
144
mm
Distance between attachment bolts
N
21
mm
Diameter of attachment bolt hole
A2
21
mm
Flange width
A1
16
mm
Flange width
A
38
mm
Base width
A0
45.5
mm
Overall width
B,B1,B2
43
mm
Width of inner ring
H
171
mm
Overall length
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
