NSK UKIP208D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKIP208D1
Included products
Bearing
Housing
IP208D1
Housing
Associated products
Adapter sleeve

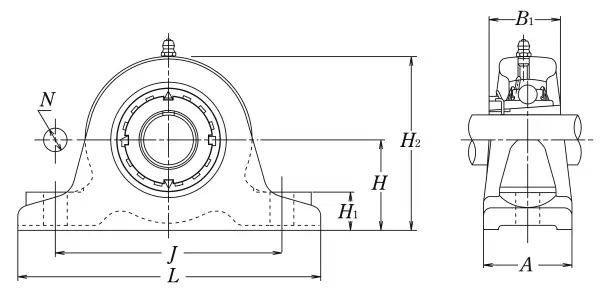

Nominal Dimensions
d
35
mm
Bore diameter
L
200
mm
Overall length
H
60
mm
Height of spherical seat centre
J
150
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A
60
mm
Base width
H1
25
mm
Distance between bottoms of piloting grooves
B1
46
mm
Width of inner ring
H2
115
mm
Overall height
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
