NSK UKIP209D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKIP209D1
Included products
Bearing
Housing
IP209D1
Housing
Associated products
Adapter sleeve

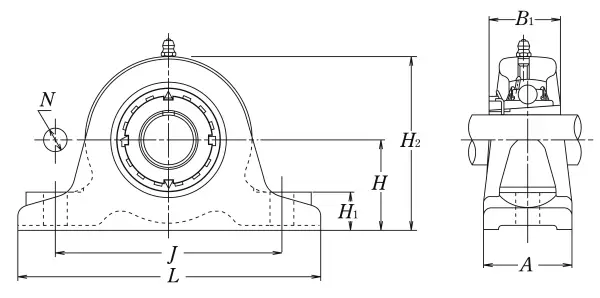

Nominal Dimensions
d
40
mm
Bore diameter
L
210
mm
Overall length
H
70
mm
Height of spherical seat centre
J
160
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A
60
mm
Base width
H1
25
mm
Distance between bottoms of piloting grooves
B1
50
mm
Width of inner ring
H2
128
mm
Overall height
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
