NSK UKIP212D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKIP212D1
Included products
Bearing
Housing
IP212D1
Housing
Associated products
Adapter sleeve

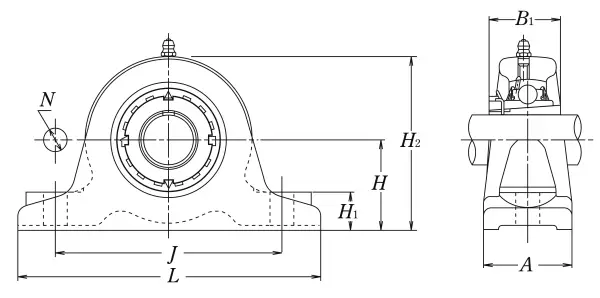

Nominal Dimensions
d
55
mm
Bore diameter
L
260
mm
Overall length
H
80
mm
Height of spherical seat centre
J
200
mm
Distance between attachment bolts
N
22
mm
Diameter of attachment bolt hole
A
70
mm
Base width
H1
30
mm
Distance between bottoms of piloting grooves
B1
62
mm
Width of inner ring
H2
155
mm
Overall height
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
