NSK UKIP320D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKIP320D1
Included products
Bearing
Housing
IP320D1
Housing
Associated products
Adapter sleeve

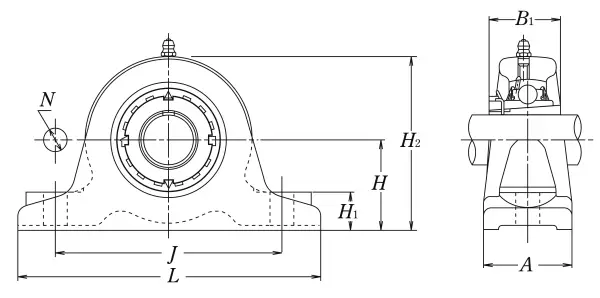

Nominal Dimensions
d
90
mm
Bore diameter
L
430
mm
Overall length
H
150
mm
Height of spherical seat centre
J
360
mm
Distance between attachment bolts
N
30
mm
Diameter of attachment bolt hole
A
85
mm
Base width
H1
45
mm
Distance between bottoms of piloting grooves
B1
97
mm
Width of inner ring
H2
295
mm
Overall height
Mounting information
G
M27
Bolt size
Basic Load Ratings
Cr
173
kN
Basic dynamic load rating
C0r
141
kN
Basic static load rating
