NSK UKP307D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKP307D1
Included products
Bearing
Housing
P307D1
Housing
Associated products
Adapter sleeve

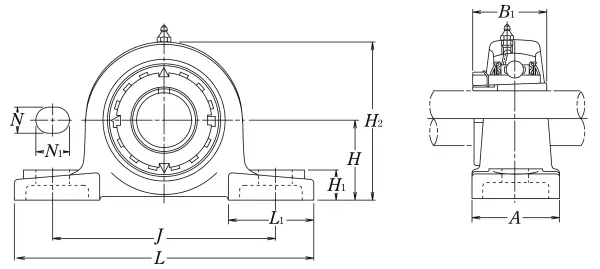

Nominal Dimensions
d
30
mm
Bore diameter
N1
25
mm
Length of attachment bolt hole
L
210
mm
Overall length
H
56
mm
Height of spherical seat centre
J
160
mm
Distance between attachment bolts
N
17
mm
Diameter of attachment bolt hole
A
53
mm
Base width
H1
20
mm
Distance between bottoms of piloting grooves
B1
43
mm
Width of inner ring
L1
60
mm
Foot width
H2
106
mm
Overall height
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
33.5
kN
Basic dynamic load rating
C0r
19.1
kN
Basic static load rating
