NSK UKP319D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKP319D1
Included products
Bearing
Housing
P319D1
Housing
Associated products
Adapter sleeve

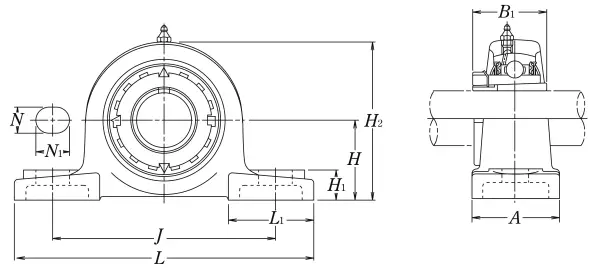

Nominal Dimensions
d
85
mm
Bore diameter
N1
50
mm
Length of attachment bolt hole
L
470
mm
Overall length
H
125
mm
Height of spherical seat centre
J
360
mm
Distance between attachment bolts
N
36
mm
Diameter of attachment bolt hole
A
120
mm
Base width
H1
45
mm
Distance between bottoms of piloting grooves
B1
90
mm
Width of inner ring
L1
125
mm
Foot width
H2
250
mm
Overall height
Mounting information
G
M30
Bolt size
Basic Load Ratings
Cr
153
kN
Basic dynamic load rating
C0r
119
kN
Basic static load rating
