NSK UKP320D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKP320D1
Included products
Bearing
Housing
P320D1
Housing
Associated products
Adapter sleeve

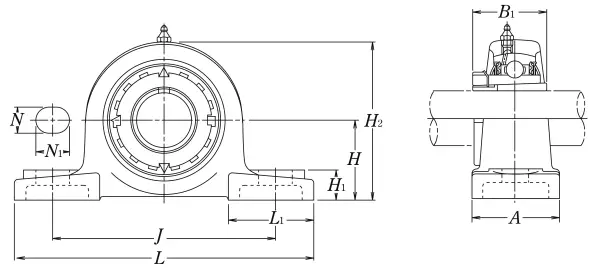

Nominal Dimensions
d
90
mm
Bore diameter
N1
50
mm
Length of attachment bolt hole
L
490
mm
Overall length
H
140
mm
Height of spherical seat centre
J
380
mm
Distance between attachment bolts
N
36
mm
Diameter of attachment bolt hole
A
120
mm
Base width
H1
50
mm
Distance between bottoms of piloting grooves
B1
97
mm
Width of inner ring
L1
130
mm
Foot width
H2
275
mm
Overall height
Mounting information
G
M30
Bolt size
Basic Load Ratings
Cr
173
kN
Basic dynamic load rating
C0r
141
kN
Basic static load rating
