NSK UKPX06D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKPX06D1
Included products
Bearing
Housing
PX06D1
Housing
Associated products
Adapter sleeve

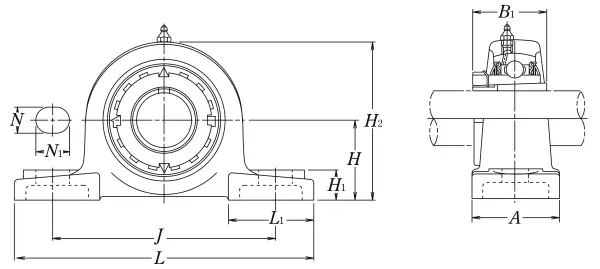

Nominal Dimensions
d
25
mm
Bore diameter
N1
20
mm
Length of attachment bolt hole
L
175
mm
Overall length
H
47.6
mm
Height of spherical seat centre
J
127
mm
Distance between attachment bolts
N
17
mm
Diameter of attachment bolt hole
A
57
mm
Base width
H1
20
mm
Distance between bottoms of piloting grooves
B1
38
mm
Width of inner ring
L1
54
mm
Foot width
H2
93
mm
Overall height
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
