NSK UKPX09D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKPX09D1
Included products
Bearing
Housing
P309D1
Housing
Associated products
Adapter sleeve

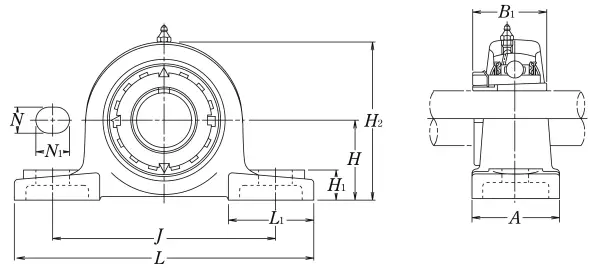

Nominal Dimensions
d
40
mm
Bore diameter
N1
23
mm
Length of attachment bolt hole
L
222
mm
Overall length
H
58.7
mm
Height of spherical seat centre
J
156
mm
Distance between attachment bolts
N
20
mm
Diameter of attachment bolt hole
A
67
mm
Base width
H1
26
mm
Distance between bottoms of piloting grooves
B1
50
mm
Width of inner ring
L1
65
mm
Foot width
H2
116
mm
Overall height
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
35
kN
Basic dynamic load rating
C0r
23.2
kN
Basic static load rating
