NSK UKPX17D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKPX17D1
Included products
Bearing
Housing
PX17D1
Housing
Associated products
Adapter sleeve

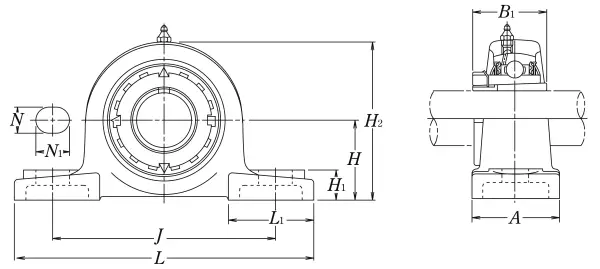

Nominal Dimensions
d
75
mm
Bore diameter
N1
30
mm
Length of attachment bolt hole
L
381
mm
Overall length
H
101.6
mm
Height of spherical seat centre
J
283
mm
Distance between attachment bolts
N
27
mm
Diameter of attachment bolt hole
A
102
mm
Base width
H1
40
mm
Distance between bottoms of piloting grooves
B1
82
mm
Width of inner ring
L1
110
mm
Foot width
H2
200
mm
Overall height
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
96
kN
Basic dynamic load rating
C0r
71.5
kN
Basic static load rating
