NSK UKPX20D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKPX20D1
Included products
Bearing
Housing
PX20D1
Housing
Associated products
Adapter sleeve

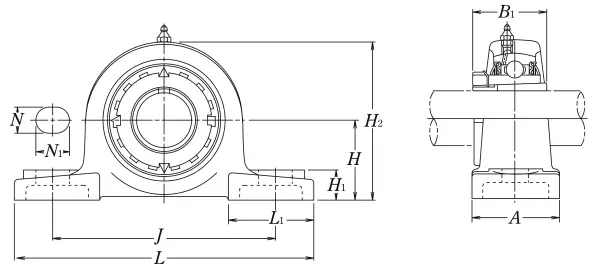

Nominal Dimensions
d
90
mm
Bore diameter
N1
36
mm
Length of attachment bolt hole
L
432
mm
Overall length
H
127
mm
Height of spherical seat centre
J
337
mm
Distance between attachment bolts
N
33
mm
Diameter of attachment bolt hole
A
121
mm
Base width
H1
45
mm
Distance between bottoms of piloting grooves
B1
97
mm
Width of inner ring
L1
125
mm
Foot width
H2
244
mm
Overall height
Mounting information
G
M27
Bolt size
Basic Load Ratings
Cr
133
kN
Basic dynamic load rating
C0r
105
kN
Basic static load rating
