NSK UKS206LN
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKS206LN
Included products
Bearing
Associated products
Adapter sleeve

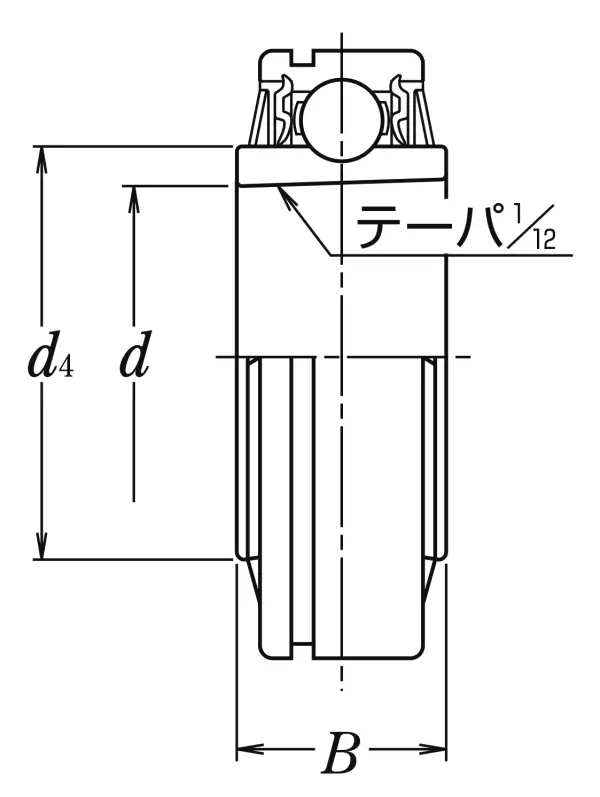

Nominal Dimensions
d
30
mm
Bore diameter
D
62
mm
Outside diameter
B1
38
mm
Overall bearing width
d1
25
mm
Sleeve bore diameter
d2
45
mm
Outside diameter lock nut
B,B4
26
mm
Width of inner ring
B2
8
mm
Width lock nut including lock washer
C
19
mm
Outer ring width
r(min.)
1
mm
Chamfer dimension
d4
40.8
mm
Outside diameter of inner ring
D1
59.61
mm
Diameter of snap ring groove
a
3.2
mm
Distance outer ring from side face to snap ring groove
b
2.05
mm
Width of snap ring groove
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
Mass approx.
0.36
kg
Mass approx.
