NSK UKS209LN
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKS209LN
Included products
Bearing
Associated products
Adapter sleeve

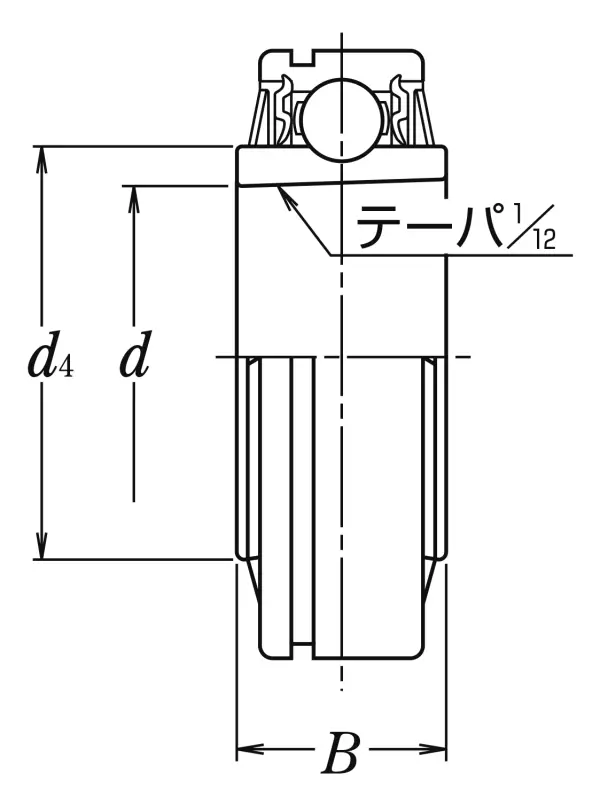

Nominal Dimensions
d
45
mm
Bore diameter
D
85
mm
Outside diameter
B1
50
mm
Overall bearing width
d1
40
mm
Sleeve bore diameter
d2
65
mm
Outside diameter lock nut
B,B4
31
mm
Width of inner ring
B2
11
mm
Width lock nut including lock washer
C
22
mm
Outer ring width
r(min.)
1.5
mm
Chamfer dimension
d4
57.5
mm
Outside diameter of inner ring
D1
81.81
mm
Diameter of snap ring groove
a
3.5
mm
Distance outer ring from side face to snap ring groove
b
2.05
mm
Width of snap ring groove
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
Mass
Mass approx.
0.8
kg
Mass approx.
