NSK UKS215
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKS215
Included products
Bearing
Associated products
Adapter sleeve

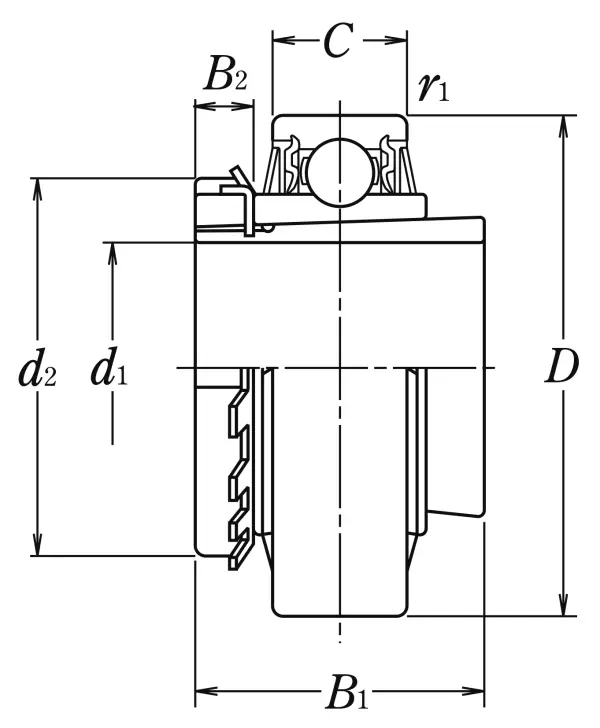

Nominal Dimensions
d
75
mm
Bore diameter
D
130
mm
Outside diameter
B1
73
mm
Overall bearing width
d1
65
mm
Sleeve bore diameter
d2
98
mm
Outside diameter lock nut
B,B4
44
mm
Width of inner ring
B2
15
mm
Width lock nut including lock washer
C
34
mm
Outer ring width
r(min.)
2
mm
Chamfer dimension
d4
93
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
66
kN
Basic dynamic load rating
C0r
49.5
kN
Basic static load rating
Mass
Mass approx.
2.56
kg
Mass approx.
