NSK UKS216
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKS216
Included products
Bearing
Associated products
Adapter sleeve

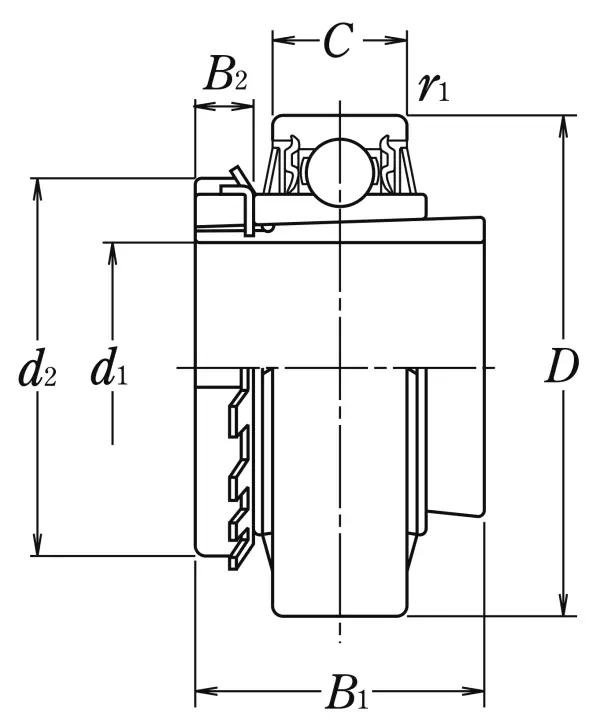

Nominal Dimensions
d
80
mm
Bore diameter
D
140
mm
Outside diameter
B1
78
mm
Overall bearing width
d1
70
mm
Sleeve bore diameter
d2
105
mm
Outside diameter lock nut
B,B4
45
mm
Width of inner ring
B2
17
mm
Width lock nut including lock washer
C
35
mm
Outer ring width
r(min.)
2.5
mm
Chamfer dimension
d4
98.1
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
72.5
kN
Basic dynamic load rating
C0r
53
kN
Basic static load rating
Mass
Mass approx.
3.23
kg
Mass approx.
