NSK UKS305
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKS305
Included products
Bearing
Associated products
Adapter sleeve

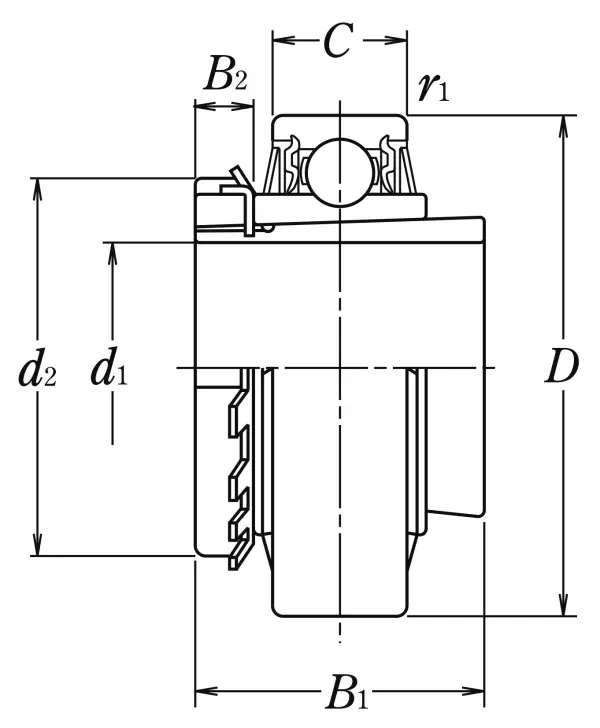

Nominal Dimensions
d
25
mm
Bore diameter
D
62
mm
Outside diameter
B1
35
mm
Overall bearing width
d1
20
mm
Sleeve bore diameter
d2
38
mm
Outside diameter lock nut
B,B4
26
mm
Width of inner ring
B2
8
mm
Width lock nut including lock washer
C
20
mm
Outer ring width
r(min.)
0.6
mm
Chamfer dimension
d4
36.8
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
21.2
kN
Basic dynamic load rating
C0r
10.9
kN
Basic static load rating
Mass
Mass approx.
0.5
kg
Mass approx.
