NSK UKX11D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKX11D1
Included products
Bearing
Associated products
Adapter sleeve

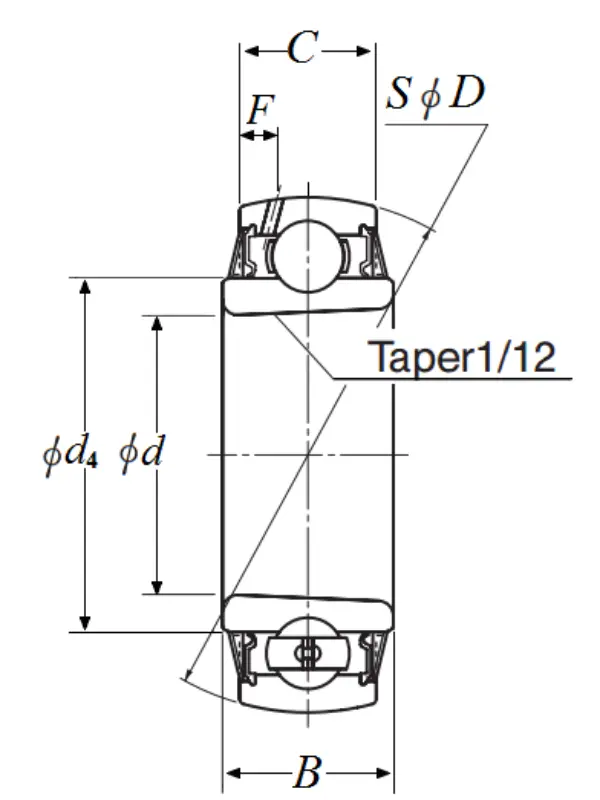

Nominal Dimensions
d
55
mm
Bore diameter
D
110
mm
Outside diameter
B1
59
mm
Overall bearing width
d1
50
mm
Sleeve bore diameter
d2
75
mm
Outside diameter lock nut
B,B4
38
mm
Width of inner ring
B2
12
mm
Width lock nut including lock washer
C
27
mm
Outer ring width
Ca
7.3
mm
Distance from oil hole centre to raceway centre
d4
77
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
Mass
Mass approx.
1.62
kg
Mass approx.
