NSK Z-UCFL205D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
Z-UCFL205D1
Included products
Bearing
Housing
FL205D1
Housing

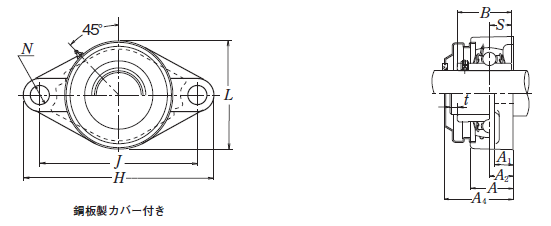

Nominal Dimensions
d
25
mm
Bore diameter
L,L1
68
mm
Overall height
J
99
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
16
mm
Flange width
A1
13
mm
Flange width
A
27
mm
Base width
A4
40
mm
Width including end cover
B,B1,B2
34.1
mm
Width of inner ring
t
2
mm
Clearance
H
130
mm
Overall length
S
14.3
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
mass
0.6
kg
Mass approx.
