NSK Z-UCFL206D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
Z-UCFL206D1
Included products
Bearing
Housing
FL206D1
Housing

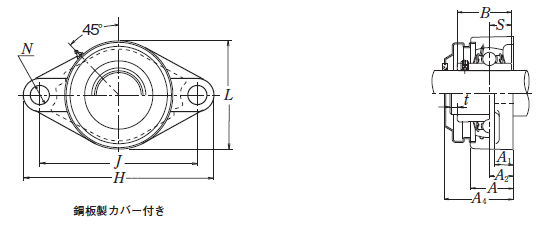

Nominal Dimensions
d
30
mm
Bore diameter
L,L1
80
mm
Overall height
J
117
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
18
mm
Flange width
A1
13
mm
Flange width
A
31
mm
Base width
A4
45
mm
Width including end cover
B,B1,B2
38.1
mm
Width of inner ring
t
2
mm
Clearance
H
148
mm
Overall length
S
15.9
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
mass
0.9
kg
Mass approx.
