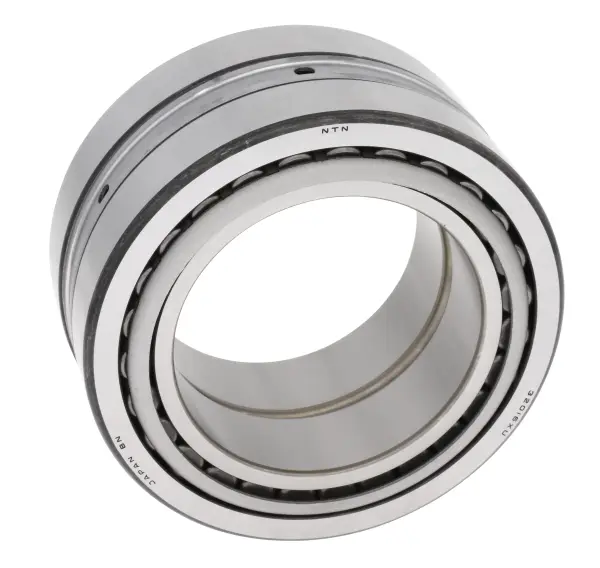

NTN 32016XUDFCB69
Tapered Roller Set - Metric Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Tapered Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Style
TS Assembly
Precision Rating
Class 0
Configuration
Two
Lubrication
w/o Oil Hole
e (Axial Load Factor)
0.42
Y2 (Axial Load Factor)
2.38
Static Load Rating
430000 N
Dynamic Load Rating
239000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
80.000 mm
D
125.000 mm
C
29.000 mm
B
58.000 mm
r
1.500 mm
R
0.6 mm
