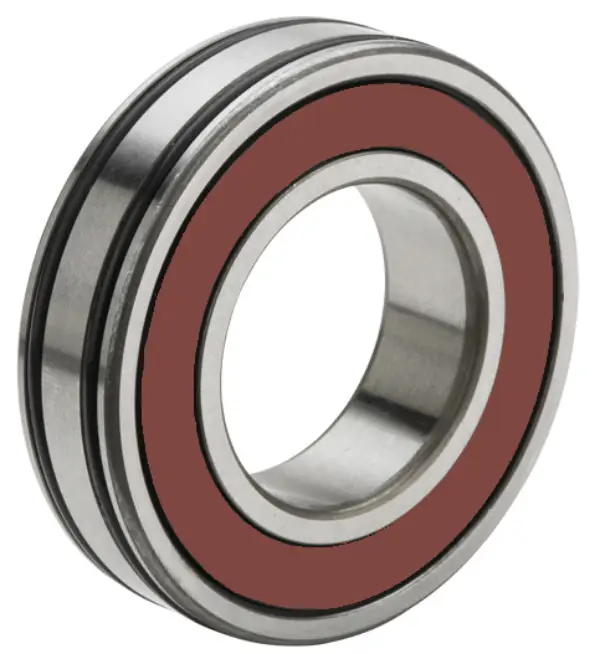

NTN AC-6209LLUC3
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
5200 RPM
Precision
Class 0
Configuration
One
Factor
14.1
Radial Internal Clearance
C3
Static Load Rating
20400 N
Dynamic Load Rating
36000 N
Enclosure
Double Sealed
Weight
0.391 kg
Operating Temperature Range
-40 to 120 ºC

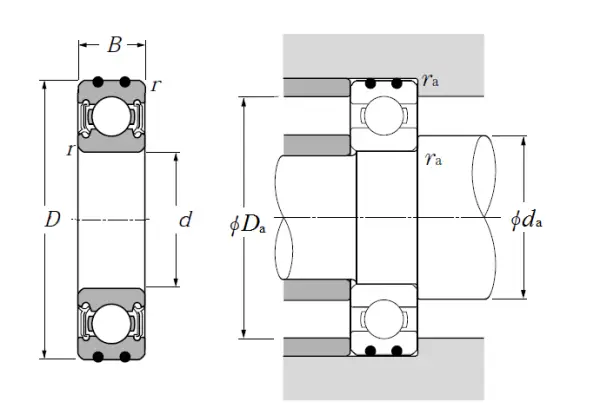

Dimensional Specifications
d
45.000 mm
D
85.000 mm
B
19.000 mm
r
1.100 mm
da min
51.500 mm
da max
55.500 mm
Da max
78.500 mm
ras max
1.000 mm
