NTN N1044
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Machined Carbon Steel
Limiting Speed - Oil
2300 RPM
Limiting Speed - Grease
2000 RPM
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
750000 N
Dynamic Load Rating
500000 N
Enclosure
Open
Weight
18.100 kg

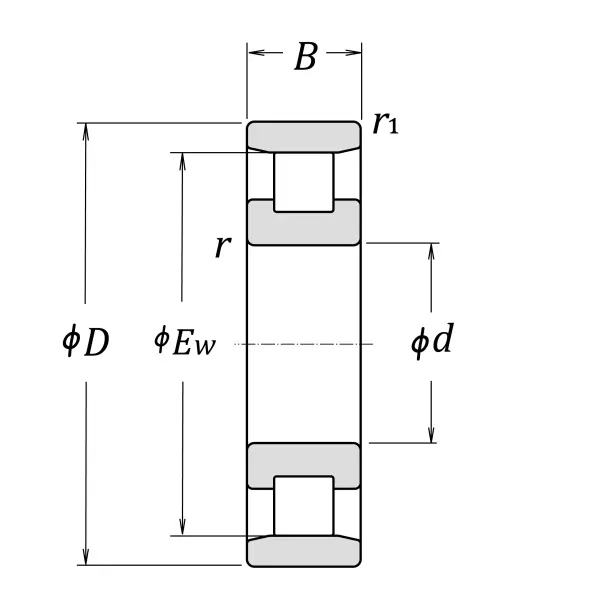

Dimensional Specifications
d
220.000 mm
D
340.000 mm
B
56.000 mm
Ew
310.000 mm
J
262.000 mm
r
3.000 mm

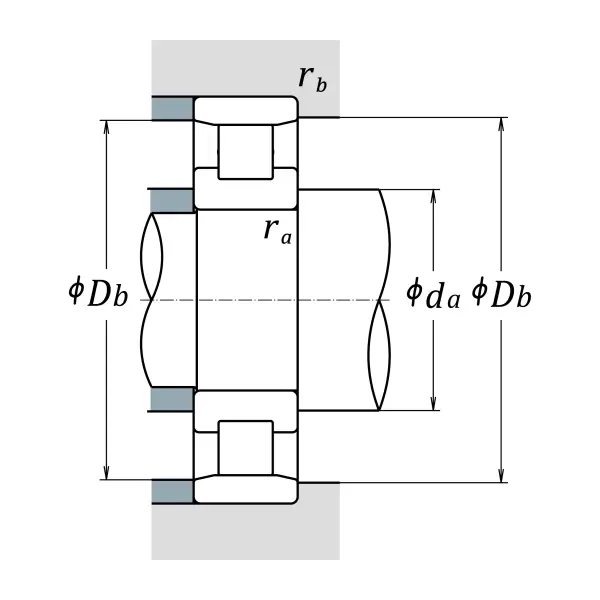

da min
233.000 mm
db min
233.000 mm
Da max
327.000 mm
Db max
327.000 mm
Db min
327.000 mm
r1as max
3.000 mm
