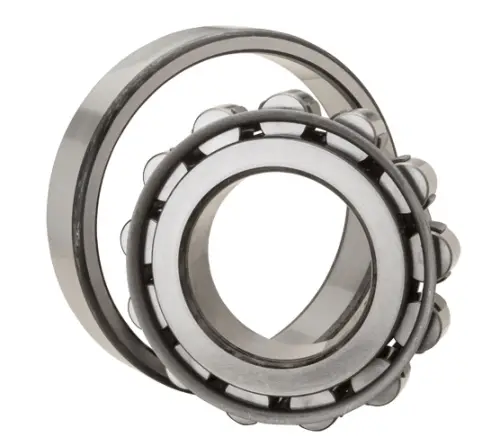

NTN N203
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
9550 N
Dynamic Load Rating
11800 N
Enclosure
Open
Weight
0.067 kg

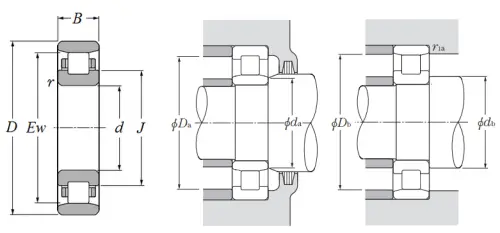

Dimensional Specifications
d
17.000 mm
D
40.000 mm
B
12.000 mm
