NTN N2344
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 Piece, Machined Brass Cage
Limiting Speed - Oil
1400 RPM
Limiting Speed - Grease
1200 RPM
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
2620000 N
Dynamic Load Rating
1780000 N
Enclosure
Open

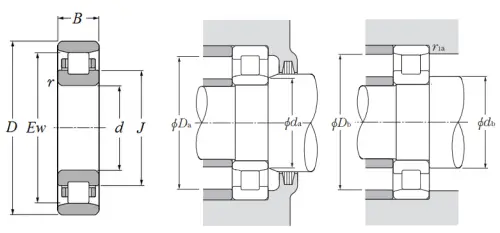

Dimensional Specifications
d
220.000 mm
D
460.000 mm
B
145.000 mm
Ew
396.000 mm
J
307.000 mm
r
5.000 mm
da min
240.000 mm
db min
240.000 mm
Da max
440.000 mm
Db max
440.000 mm
Db min
440.000 mm
r1as max
5.000 mm
