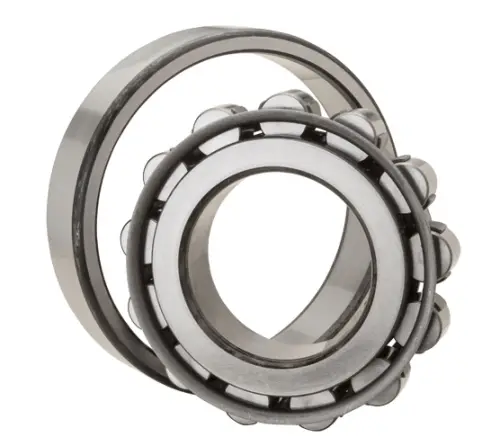

NTN N356
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
1200 RPM
Limiting Speed - Grease
1100 RPM
Precision
ISO Class 0
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
2540000 N
Dynamic Load Rating
1820000 N
Enclosure
Open
Weight
139.000 kg

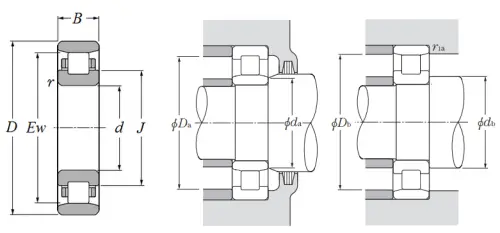

Dimensional Specifications
d
280.000 mm
D
580.000 mm
B
108.000 mm
Ew
498.000 mm
J
390.000 mm
r
6.000 mm
da min
304.000 mm
db min
304.000 mm
Da max
556.000 mm
Db max
556.000 mm
Db min
556.000 mm
r1as max
6.000 mm
