NTN NF352
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
1400 RPM
Limiting Speed - Grease
1200 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
2230000 N
Dynamic Load Rating
1620000 N
Enclosure
Open

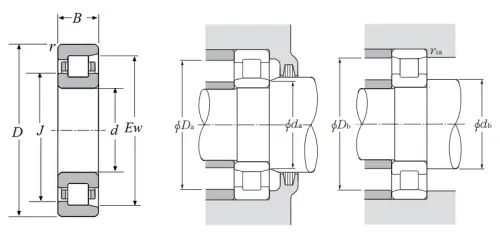

Dimensional Specifications
d
260.000 mm
D
540.000 mm
B
102.000 mm
Ew
464.000 mm
J
362.000 mm
r
6.000 mm
da min
284.000 mm
db min
284.000 mm
Da max
516.000 mm
Db max
516.000 mm
Db min
471.000 mm
r1as max
6.000 mm
