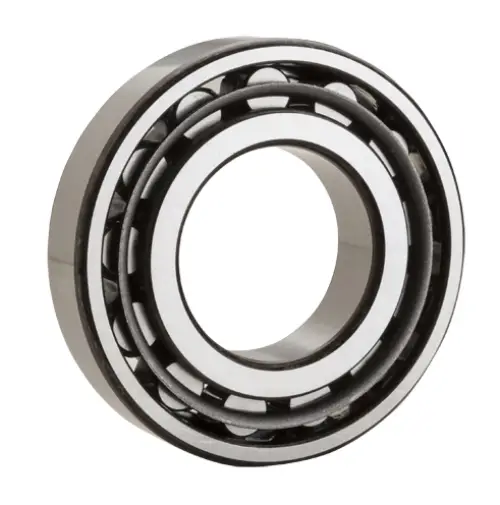

NTN NFV2956B
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
1740000 N
Dynamic Load Rating
880000 N
Enclosure
Open

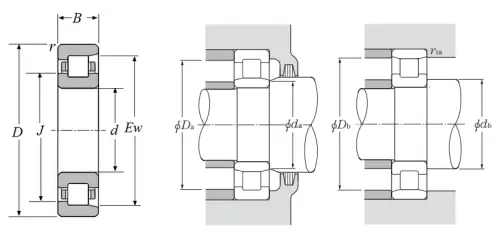

Dimensional Specifications
d
280.000 mm
D
380.000 mm
B
60.000 mm
Ew
359.000 mm
J
317.000 mm
r
2.100 mm
r1as max
2.100 mm
