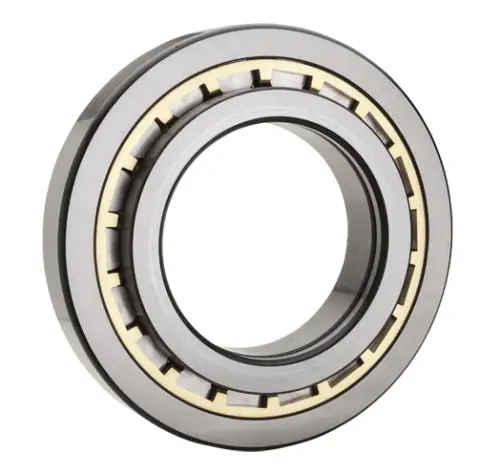

NTN NH205
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
27700 N
Dynamic Load Rating
29300 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

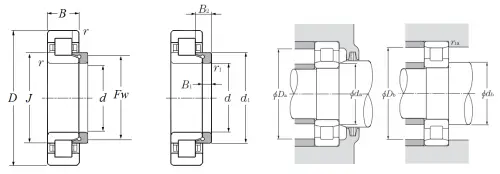

Dimensional Specifications
d
25.000 mm
D
52.000 mm
B
15.000 mm
Fw
32.000 mm
d1
34.800 mm
B1
3.000 mm
B2
7.250 mm
J
34.800 mm
r
1.000 mm
r1
0.600 mm
da min
29.000 mm
Da max
47.000 mm
