NTN NH2205E
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Nylon
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
34500 N
Dynamic Load Rating
35000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

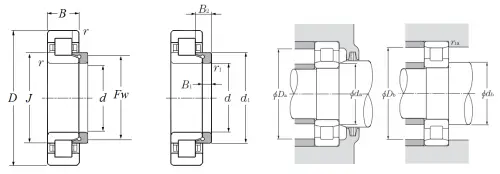

Dimensional Specifications
d
25.000 mm
D
52.000 mm
B
18.000 mm
Fw
31.500 mm
d1
34.500 mm
B1
3.000 mm
B2
6.500 mm
J
34.500 mm
r
1.000 mm
r1
0.600 mm
da min
29.000 mm
Da max
47.000 mm
