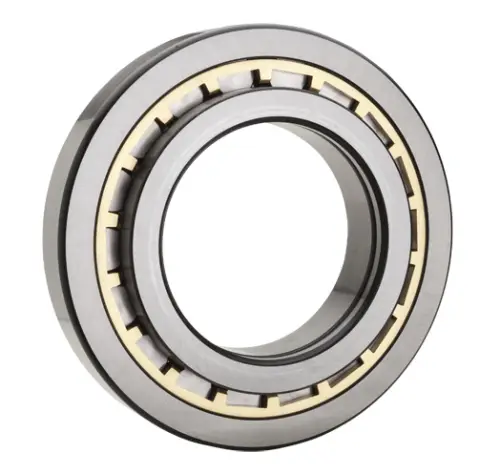

NTN NH2304E
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Nylon
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
39000 N
Dynamic Load Rating
42000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

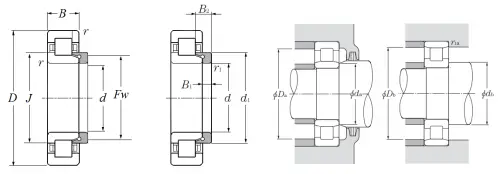

Dimensional Specifications
d
20.000 mm
D
52.000 mm
B
21.000 mm
Fw
27.500 mm
d1
31.100 mm
B1
4.000 mm
B2
7.500 mm
J
31.100 mm
r
1.100 mm
r1
0.600 mm
da min
24.000 mm
Da max
45.500 mm
