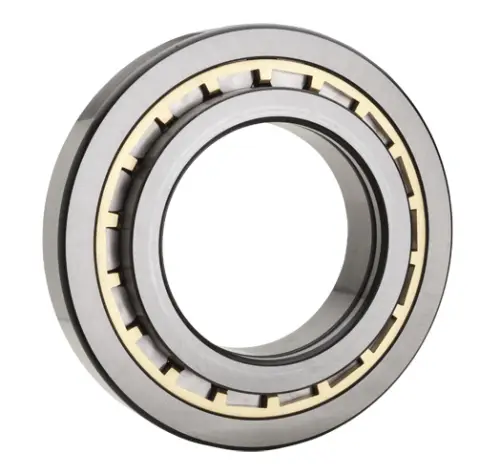

NTN NH2305
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
45000 N
Dynamic Load Rating
46000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

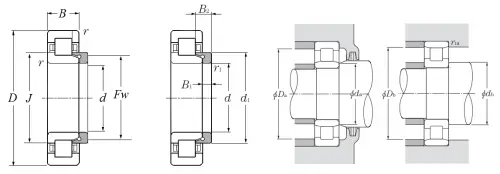

Dimensional Specifications
d
25.000 mm
D
62.000 mm
B
24.000 mm
Fw
35.000 mm
d1
39.000 mm
B1
4.000 mm
B2
9.000 mm
J
39.000 mm
r
1.100 mm
r1
1.100 mm
da min
31.500 mm
Da max
55.500 mm
