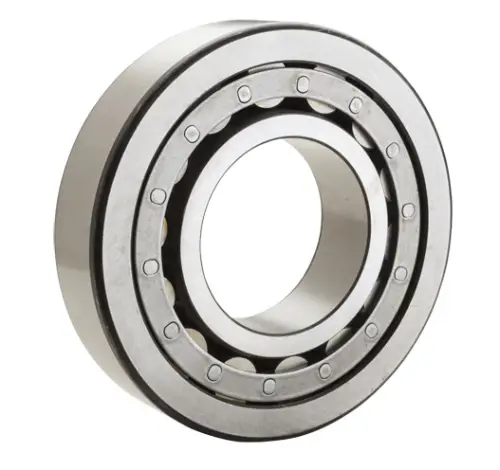

NTN NJ1005
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Machined Carbon Steel
Limiting Speed - Oil
19000 RPM
Limiting Speed - Grease
16000 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
14100 N
Dynamic Load Rating
15100 N
Enclosure
Open
Weight
0.092 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
25.000 mm
D
47.000 mm
B
12.000 mm
Fw
30.500 mm
J
32.700 mm
r
0.600 mm
da min
27.000 mm
db min
29.000 mm
Da max
43.000 mm
Db max
45.000 mm
Db min
42.500 mm
r1as max
0.300 mm
