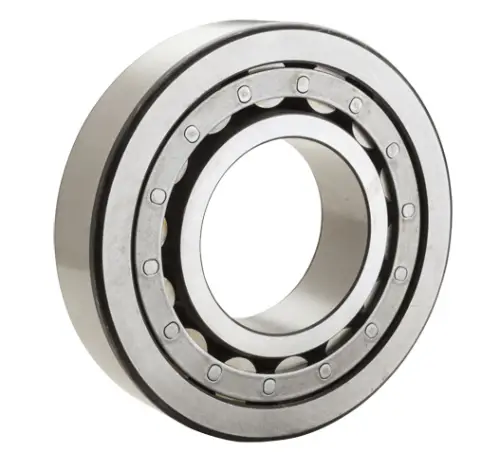

NTN NJ305C3
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
14000 RPM
Limiting Speed - Grease
12000 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C3
Static Load Rating
27700 N
Dynamic Load Rating
31500 N
Enclosure
Open
Weight
0.241 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
25.000 mm
D
62.000 mm
B
17.000 mm
Fw
35.000 mm
J
39.000 mm
r
1.100 mm
da min
31.500 mm
Da max
55.500 mm
r1as max
1.000 mm
