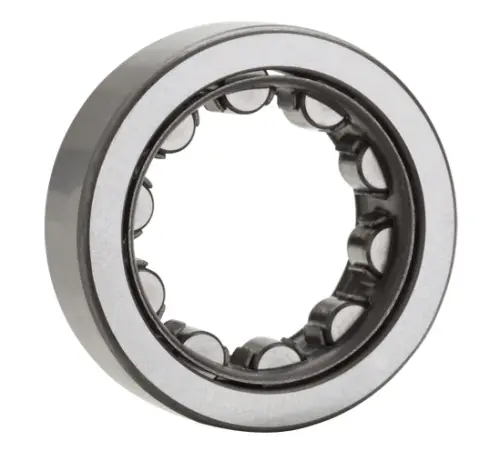

NTN NU304C3
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
17000 RPM
Limiting Speed - Grease
14000 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C3
Static Load Rating
19200 N
Dynamic Load Rating
23100 N
Enclosure
Open
Weight
0.153 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
20.000 mm
D
52.000 mm
B
15.000 mm
Fw
28.500 mm
r
1.100 mm
da min
24.000 mm
Da max
45.500 mm
r1as max
0.600 mm
