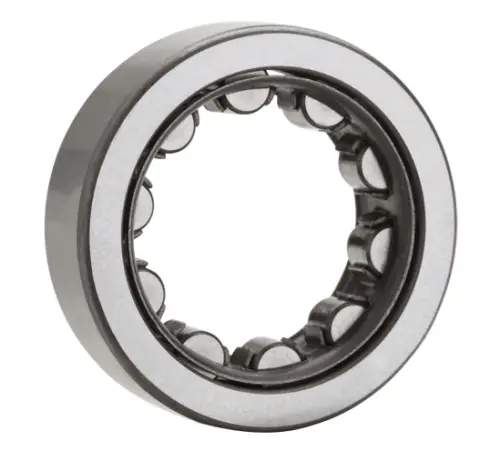

NTN NU305EG1CM
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength Machined Brass Rivetless w/ square holes
Limiting Speed - Oil
13000 RPM
Limiting Speed - Grease
11000 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Static Load Rating
37500 N
Dynamic Load Rating
41500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
25.000 mm
D
62.000 mm
B
17.000 mm
Fw
34.000 mm
r
1.100 mm
da min
31.500 mm
Da max
55.500 mm
r1as max
1.000 mm
