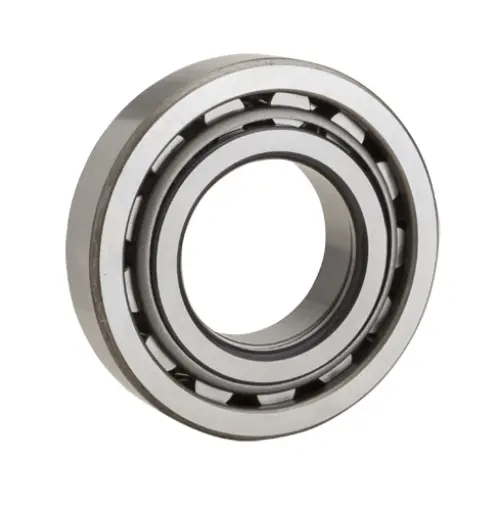

NTN NUP2356
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
1100 RPM
Limiting Speed - Grease
920 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
4250000 N
Dynamic Load Rating
2700000 N
Enclosure
Open
Weight
222.000 kg
Operating Temperature Range
-40 to 120 ºC

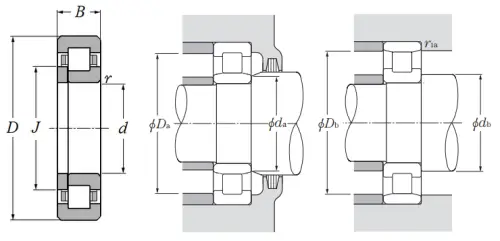

Dimensional Specifications
d
280.000 mm
D
580.000 mm
B
175.000 mm
J
390.000 mm
r
6.000 mm
da min
304.000 mm
db min
304.000 mm
Da max
556.000 mm
Db max
556.000 mm
Db min
505.000 mm
r1as max
5.000 mm
