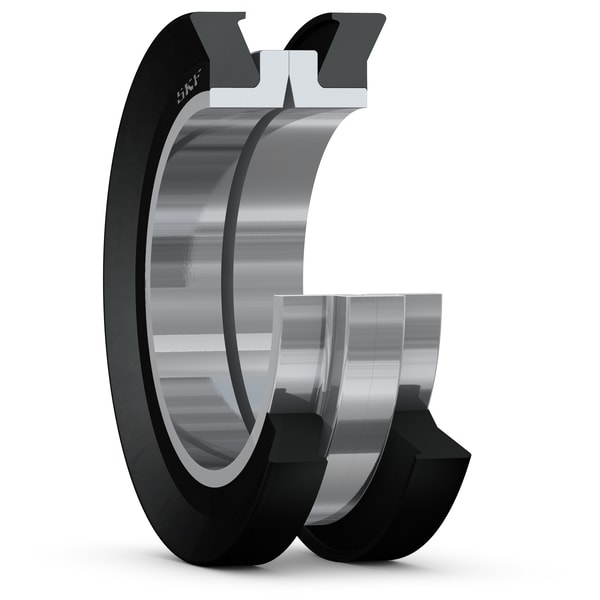

SKF 116500
Metal face seal
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
295.28 mm
Shaft diameter
D
336.55 mm
Housing bore diameter
B1
32.77 mm
Operating width
B
15.62 mm
Housing bore depth
d3
299.21 mm
Seal inside diameter
b
30.73 mm
Width of metal sealing rings
r
1.14 mm
Radius
mass
2.27 kg
Product net weight
