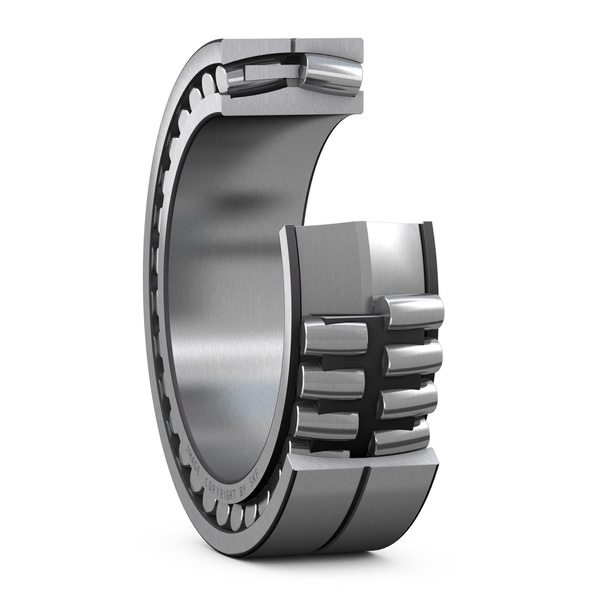

SKF 231/1000 CAKF/W33
Spherical roller bearing with tapered bore and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
1000.0 mm
Bore diameter
D
1580.0 mm
Outside diameter
B
462.0 mm
Width
d2
1185.0 mm
Shoulder diameter of inner ring
D1
1403.0 mm
Shoulder/recess diameter of outer ring
b
22.3 mm
Width of lubrication groove
K
12.0 mm
Diameter of lubrication hole
r1,2
12.0 mm
Chamfer dimension
mass
3390.0 kg
Product net weight
