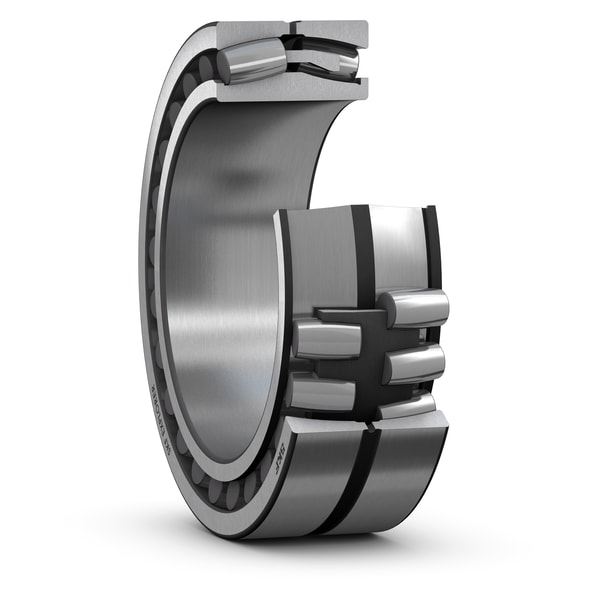

SKF 240/670 BC
Spherical roller bearing for wind turbine main shafts
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
670.0 mm
Bore diameter
D
980.0 mm
Outside diameter
B
308.0 mm
Width
d2
762.0 mm
Shoulder diameter of inner ring
D1
879.0 mm
Shoulder/recess diameter of outer ring
b
63.2 mm
Width of lubrication groove
K
15.0 mm
Diameter of lubrication hole
r1,2
7.5 mm
Chamfer dimension
mass
790.0 kg
Product net weight
