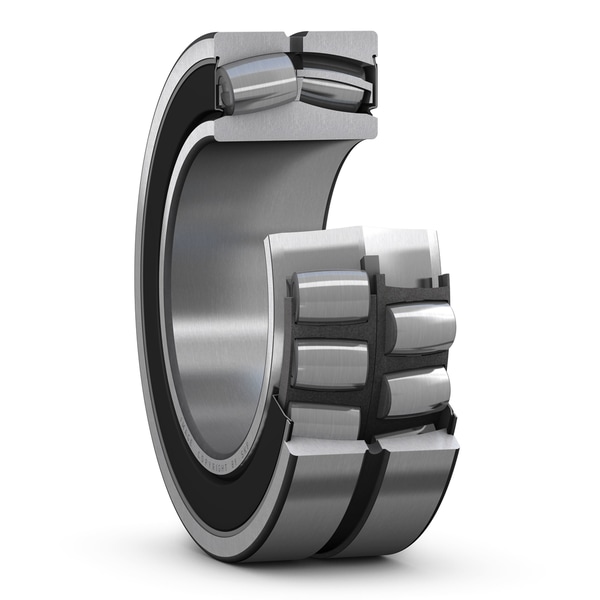

SKF 24144-2CS5K30/VT143
Spherical roller bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
220.0 mm
Bore diameter
D
370.0 mm
Outside diameter
B
150.0 mm
Width
d2
242.0 mm
Shoulder diameter of inner ring
D1
326.0 mm
Shoulder/recess diameter of outer ring
b
11.1 mm
Width of lubrication groove
K
6.0 mm
Diameter of lubrication hole
r1,2
4.0 mm
Chamfer dimension
mass
64.5 kg
Product net weight
