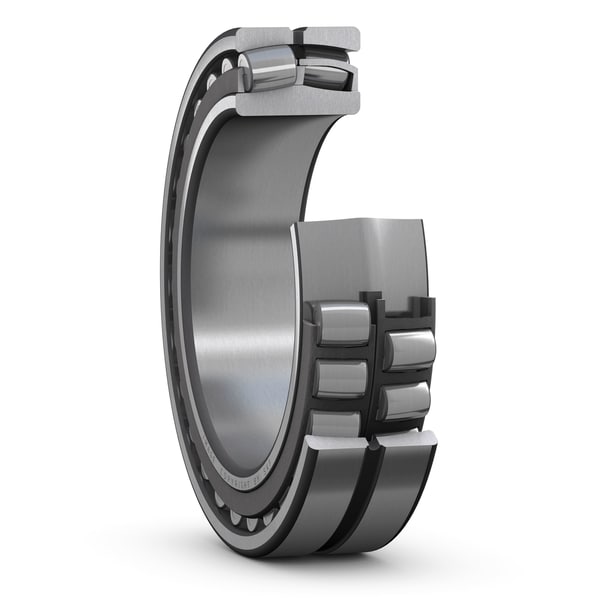

SKF 24152 CC/W33
Spherical roller bearing with relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
260.0 mm
Bore diameter
D
440.0 mm
Outside diameter
B
180.0 mm
Width
d2
293.0 mm
Shoulder diameter of inner ring
D1
368.0 mm
Shoulder/recess diameter of outer ring
b
13.9 mm
Width of lubrication groove
K
7.5 mm
Diameter of lubrication hole
r1,2
4.0 mm
Chamfer dimension
mass
110.0 kg
Product net weight
