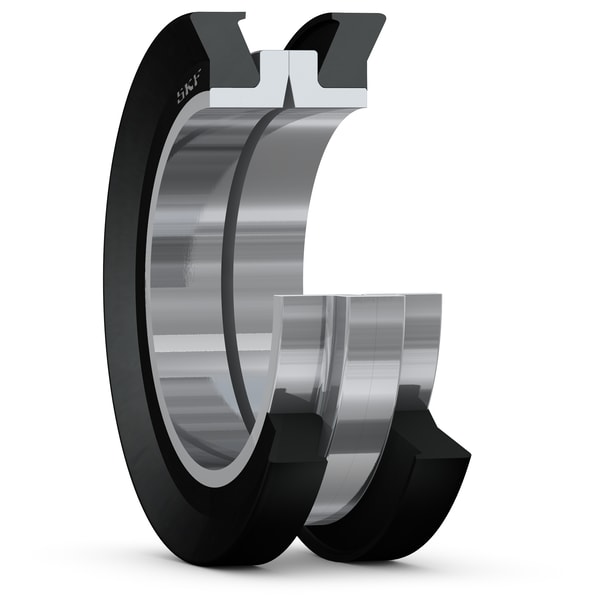

SKF 27536
Metal face seal
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
69.85 mm
Shaft diameter
D
102.36 mm
Housing bore diameter
B1
23.32 mm
Operating width
B
10.82 mm
Housing bore depth
d3
71.88 mm
Seal inside diameter
b
20.57 mm
Width of metal sealing rings
r
1.07 mm
Radius
mass
0.306 kg
Product net weight
