SKF 305180

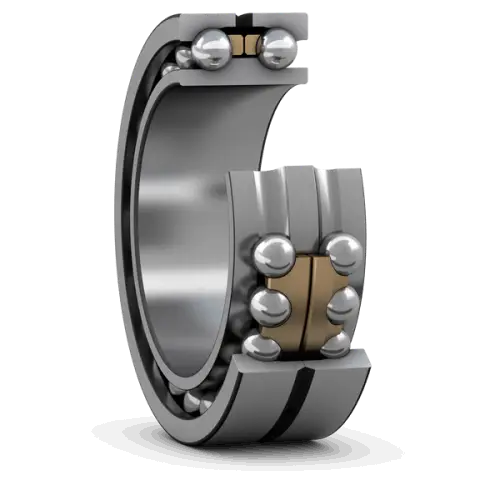

Double row angular contact ball bearing with split outer ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
170.0 mm
Bore diameter
D
260.0 mm
Outside diameter for two-piece outer ring
B
84.0 mm
Width
d1
191.0 mm
Shoulder diameter inner ring
D1
226.0 mm
Shoulder diameter for two-piece outer ring
K
6.0 mm
Radius of lubrication hole in two-piece outer ring (to be multiplied by two to get 'K')
r1,2
2.0 mm
Chamfer dimension inner ring
a
222.0 mm
Distance pressure point(s)
mass
15.3 kg
Product net weight
