SKF 305288 DA

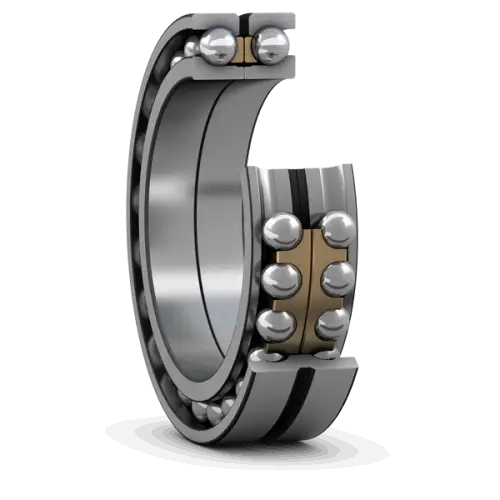

Double row angular contact ball bearing with two-piece inner ring and relubrication feature
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
180.0 mm
Bore diameter
D
250.0 mm
Outside diameter
B
70.0 mm
Width
d1
207.45 mm
Shoulder diameter inner ring for two-piece inner ring
D1
234.7 mm
Shoulder diameter outer ring
b
11.7 mm
Width annular lubrication groove at outer ring
K
6.0 mm
Diameter lubrication hole (outer ring)
r1,2
2.0 mm
Chamfer dimension inner ring for two-piece inner ring
a
216.0 mm
Distance pressure point(s)
mass
9.57 kg
Product net weight
